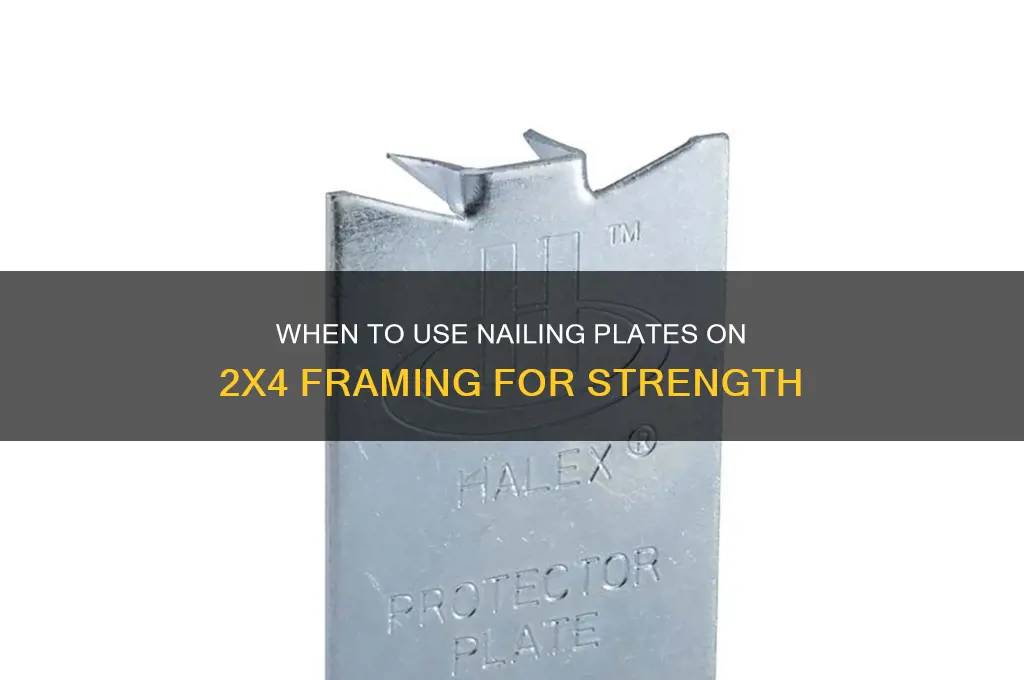

Nailing plates, also known as bridging or strapping, are essential components in construction, particularly when working with 2x4 lumber. These metal connectors are used to reinforce the structural integrity of walls, floors, and roofs by preventing warping, twisting, or racking of the wooden studs or joists. The decision of when to put nailing plates on 2x4s depends on several factors, including building codes, the specific application, and the desired level of stability. Generally, nailing plates are installed when constructing wall frames, floor systems, or roof trusses to distribute loads more evenly and ensure the structure remains plumb and secure over time. They are typically placed at critical points, such as where studs meet plates, at intersections, or along the length of members to provide additional support and prevent movement. Understanding the appropriate timing and placement of nailing plates is crucial for achieving a durable and safe construction project.
| Characteristics | Values |
|---|---|
| Purpose | To reinforce joints, improve structural integrity, and prevent splitting. |
| Common Applications | Wall framing, roof trusses, floor joists, and shear walls. |
| Material | Typically galvanized steel for corrosion resistance. |
| Size | Standard sizes fit 2x4 lumber (e.g., 14-gauge, 1.5" x 3.5"). |
| Installation Timing | During initial framing before drywall or sheathing is applied. |
| Placement | At joints, intersections, and critical stress points. |
| Fastening | Use nails or screws compatible with the plate material. |
| Building Code Compliance | Often required by local building codes for seismic or wind resistance. |
| Load Distribution | Helps distribute loads evenly across joints. |
| Aesthetic Impact | Hidden after drywall installation, no visible impact. |
| Cost | Relatively low cost compared to structural benefits. |
| Durability | Long-lasting, especially with galvanized or coated plates. |
| Ease of Installation | Simple and quick to install with basic tools. |
| Environmental Impact | Minimal, as plates are often made from recyclable steel. |
| Alternative Methods | Toe-nailing or using metal connectors as substitutes in some cases. |
Explore related products
What You'll Learn
Proper Spacing for Nailing Plates
Nailing plates, when applied correctly, significantly enhance the structural integrity of 2x4 frames by distributing stress and preventing wood splitting. Proper spacing is critical to their effectiveness, as incorrect placement can render them useless or even detrimental. The general rule of thumb is to position plates at 16 to 24 inches on center for most residential applications, aligning with standard stud spacing. This interval ensures even load distribution while minimizing material waste. However, specific projects—such as load-bearing walls or seismic zones—may require closer intervals, often 12 to 16 inches, to meet building codes or engineer specifications.
Analyzing the role of spacing reveals its direct impact on structural performance. Plates placed too far apart can leave gaps in reinforcement, while those too close may overlap, creating unnecessary bulk and cost. For example, in a typical interior partition wall, 24-inch spacing often suffices, but exterior walls or areas prone to lateral forces demand denser placement. The key is balancing structural need with practical efficiency, ensuring plates are positioned where stress is highest, such as near joints or openings.
From an instructive standpoint, achieving proper spacing begins with careful planning. Measure and mark stud locations first, then align plate positions accordingly. Use a chalk line or laser level to ensure straight, consistent intervals. When installing, start at one end of the wall and work systematically, securing each plate with nails or screws as specified by the manufacturer. For added precision, pre-drill holes in the plates to avoid wood splitting, especially in end grain or near knots.
Comparatively, spacing for nailing plates differs from other fasteners like joist hangers or hurricane ties, which have their own guidelines. While joist hangers require precise placement at the ends of joists, nailing plates are more forgiving but still demand attention to pattern. Unlike ties, which often connect two elements at a single point, plates span multiple studs, making their spacing a matter of continuous reinforcement rather than isolated connection.
In practice, a descriptive approach highlights the visual and tactile aspects of proper spacing. Well-spaced plates create a uniform grid along the wall, visible as a series of metal strips running horizontally or vertically. When done correctly, the plates should feel secure, with no visible gaps or wobble in the framing. A common mistake is uneven spacing, which can be avoided by double-checking measurements and using a consistent marking system. For DIYers, investing in a spacing jig or template can streamline the process, ensuring professional results even for novice builders.
Ultimately, proper spacing for nailing plates is a blend of science and craftsmanship. It requires understanding structural demands, following guidelines, and executing with precision. By adhering to recommended intervals and employing practical techniques, builders can maximize the strength and durability of 2x4 frames, ensuring safety and longevity in any construction project.
Do Nails Need Air? Debunking the Myth of Nail Breathing
You may want to see also
Explore related products
Nailing Plates for Wall Framing
Nailing plates, often overlooked in the grand scheme of wall framing, serve as the unsung heroes of structural integrity. These small metal connectors, typically made of galvanized steel, are designed to reinforce joints where 2x4s meet, such as at studs, top plates, and bottom plates. Their primary function is to distribute lateral forces, enhance shear strength, and ensure the wall can withstand stresses like wind, seismic activity, or even the weight of upper floors. Without them, a framed wall risks becoming a fragile assembly of wood, prone to racking and failure under pressure.
Consider the scenario of a top plate connecting to a stud: simply nailing the 2x4s together creates a weak joint, as wood-to-wood connections rely solely on nail friction. Nailing plates, however, bridge this gap by providing a metal-to-metal connection, significantly increasing the joint’s load-bearing capacity. For instance, a single 14-gauge nailing plate can increase the shear strength of a joint by up to 50%, according to building code standards. This is why codes like the International Residential Code (IRC) mandate their use in specific scenarios, such as in seismic zones or where walls exceed certain heights.
Installation timing is critical. Nailing plates should be applied during the initial framing stage, before the wall is raised and secured. This ensures precise alignment and avoids the awkwardness of retrofitting connectors in tight spaces. Start by positioning the plate over the joint, ensuring it spans both pieces of lumber. Use 8d or 10d common nails, driven through the pre-drilled holes in the plate, to secure it firmly. A pro tip: pre-drill slightly smaller pilot holes to prevent the wood from splitting, especially in drier or older lumber.
While nailing plates are essential, they’re not a one-size-fits-all solution. For example, in non-load-bearing walls or low-stress applications, their absence may be permissible, but always consult local building codes to confirm. Additionally, overusing plates can lead to unnecessary material costs and labor. A strategic approach is to focus on critical joints—where studs meet top plates, or where walls intersect—rather than overloading the frame. This balance ensures structural soundness without unnecessary expense.
Finally, the choice of plate type matters. Common options include single, double, or triple plates, each offering varying levels of strength. For standard residential walls, a single 14-gauge plate often suffices, but double plates are recommended for taller walls or high-wind areas. Always opt for galvanized or stainless steel to prevent corrosion, especially in humid environments. By understanding when and how to use nailing plates, framers can transform a basic 2x4 wall into a robust, code-compliant structure capable of withstanding the test of time and nature.
Effective Home Remedies to Strengthen and Repair Brittle Nails Fast
You may want to see also
Explore related products
Using Plates for Structural Support
Nailing plates, often overlooked in basic framing, serve as critical reinforcements where structural integrity demands more than standard nailing. These metal connectors, typically galvanized to resist corrosion, are designed to distribute loads and prevent wood members from splitting under stress. When securing 2x4s in load-bearing applications—such as wall studs in high-wind zones, seismic regions, or where walls support floors or roofs—plates ensure joints remain rigid and fail-safe. Without them, repeated movement or sudden forces can compromise connections, leading to sagging walls or even collapse.
Consider a scenario where a 2x4 stud is part of a shear wall in a hurricane-prone area. Here, nailing plates should be installed at every top and bottom plate connection to anchor the stud firmly. Use 14-gauge plates with staggered nail holes, and drive 8d (2.5-inch) galvanized nails through the plate into the framing members. For added resilience, double-plate corners and intersections where studs meet headers or sills. This configuration transforms a vulnerable joint into a robust pivot point capable of withstanding lateral forces.
In contrast to standard toe-nailing, plates offer a systematic approach to reinforcement. While toe-nails rely on wood-to-wood friction and the shear strength of nails, plates mechanically bridge the joint, reducing reliance on the wood’s inherent properties. This is particularly vital when using lower-grade lumber or in environments where moisture may weaken wood fibers over time. For instance, in a basement framing project where humidity is high, plates not only secure the 2x4s but also mitigate the risk of wood shrinkage or warping affecting the connection.
A common mistake is underestimating the placement of plates in non-load-bearing walls. Even if a wall doesn’t support weight, it may still need plates if it’s part of a braced wall panel system or if local codes require seismic upgrades. Always consult building codes or an engineer to determine if your project falls into these categories. For DIYers, a practical tip is to lay out plates before assembly, marking stud locations to ensure consistent spacing and alignment. Pre-drilling nail holes in the plates can prevent bending during installation, especially when working with harder woods or in cold weather.
Finally, while plates add material and labor costs, their value lies in long-term stability and compliance with safety standards. In regions with strict building codes, such as California’s seismic requirements or Florida’s hurricane standards, plates are non-negotiable. Even in less regulated areas, incorporating plates into critical connections is a proactive measure against unseen stresses. Think of them as insurance—a small investment that pays dividends in structural resilience, whether you’re framing a garage, adding a partition, or reinforcing an existing structure.
Why Your Nail Polish Stays Wet: Common Mistakes and Solutions
You may want to see also
Explore related products
Best Practices for Plate Installation
Nailing plates, often overlooked in construction, play a pivotal role in reinforcing structural integrity, particularly when used with 2x4 lumber. Proper installation is not just about securing the plate; it's about ensuring longevity and safety. The first step in best practices involves understanding the load requirements of your project. For instance, in wall framing, plates should be installed at every stud intersection to distribute weight evenly. This is especially critical in load-bearing walls, where the absence of plates can lead to structural failure over time.
Material selection is another critical aspect. Galvanized steel plates are preferred due to their corrosion resistance, making them ideal for both interior and exterior applications. When installing, ensure the plate spans the entire width of the 2x4, typically 3.5 inches, with holes aligned for 16d nails. The nails should penetrate the stud by at least 1.5 inches to achieve a secure hold. Overdriving nails can split the wood, while underdriving compromises the connection, so precision is key.
Timing is equally important. Plates should be installed during the initial framing stage, before drywall or sheathing is applied. This allows for easier access and ensures the plates are correctly positioned. Retrofitting plates in completed structures is not only labor-intensive but also less effective, as the added layers can obscure proper alignment. For renovations, consider using longer nails or specialized tools to navigate existing materials.
Finally, adherence to building codes cannot be overstated. Most jurisdictions require plates at wall intersections, headers, and footers to meet safety standards. For example, the International Residential Code (IRC) specifies the use of metal connectors in certain seismic zones. Ignoring these guidelines can result in failed inspections and costly rework. Always consult local codes and, when in doubt, opt for the more stringent requirement to ensure compliance and safety.
Guinea Pig Nail Count: Understanding Their Unique Paw Anatomy
You may want to see also
Explore related products
Nailing Plates vs. Metal Connectors
Nailing plates and metal connectors serve similar purposes in construction—securing 2x4s together—but their applications and effectiveness differ significantly. Nailing plates, typically made of galvanized steel, are flat strips with pre-drilled holes designed to reinforce joints by distributing the load across a wider area. Metal connectors, on the other hand, are engineered brackets or straps that provide targeted strength at critical points, often with specific load ratings. Understanding when to use one over the other hinges on the structural demands of the project and local building codes.
Consider a scenario where you’re framing a wall with 2x4 studs. If the wall is non-load-bearing and primarily serves as a partition, nailing plates may suffice. They’re cost-effective, easy to install, and provide adequate reinforcement for minimal stress. However, for load-bearing walls, headers, or areas prone to lateral forces (like seismic zones), metal connectors are often mandatory. For example, a Simpson Strong-Tie H2.5A connector is rated to withstand up to 410 pounds of tension, making it far superior to a nailing plate in high-stress applications. Always consult local codes; some jurisdictions require metal connectors in all structural framing, regardless of load.
Installation techniques further highlight the differences. Nailing plates require precise alignment and even spacing of nails to avoid splitting the wood. Use 8d (2.5-inch) galvanized nails, driven at a slight angle to maximize hold. Metal connectors, however, often come with pre-punched nail holes and specific fastener requirements—typically #9 x 1.5-inch screws or 10d nails. Improper fastening can void their load ratings, so follow manufacturer guidelines meticulously. For instance, overdriving screws into a metal connector can strip the threads, compromising its strength.
From a durability standpoint, both options offer corrosion resistance, but metal connectors often outlast nailing plates due to their thicker gauge steel and engineered design. In coastal or humid environments, opt for connectors with a higher zinc coating (G90 galvanization) or stainless steel variants. Nailing plates, while adequate for interior use, may degrade faster outdoors unless properly protected from moisture.
In conclusion, the choice between nailing plates and metal connectors boils down to structural necessity and compliance. For light-duty applications or temporary structures, nailing plates are a practical, budget-friendly solution. For critical joints, high-load scenarios, or code-mandated projects, metal connectors are non-negotiable. Always prioritize safety and longevity over cost, especially in framing, where the consequences of failure can be catastrophic.
Vicky's Journey at Modern Nails: Updates and Insights
You may want to see also
Frequently asked questions
Nailing plates are metal connectors used to reinforce joints in wood framing. They should be used on 2x4s when connecting studs, headers, or other structural members to ensure a stronger, more secure joint, especially in load-bearing applications.
No, nailing plates are not required for all 2x4 connections, but they are highly recommended for critical joints like wall-to-sole plates, stud-to-top plate connections, and intersections where structural integrity is essential.
Even in non-load-bearing walls, nailing plates can be used to improve the stability and durability of the structure, especially in areas prone to movement or settling. They are not mandatory but are a good practice for long-term reliability.
While nails can be used alone, nailing plates provide additional strength and rigidity to the joint, reducing the risk of splitting or weakening over time. They are particularly useful in high-stress areas or when using lower-grade lumber.
Nailing plates should be installed during the framing process, immediately after the 2x4s are positioned and before the joint is fully secured. This ensures proper alignment and maximum reinforcement of the connection.
