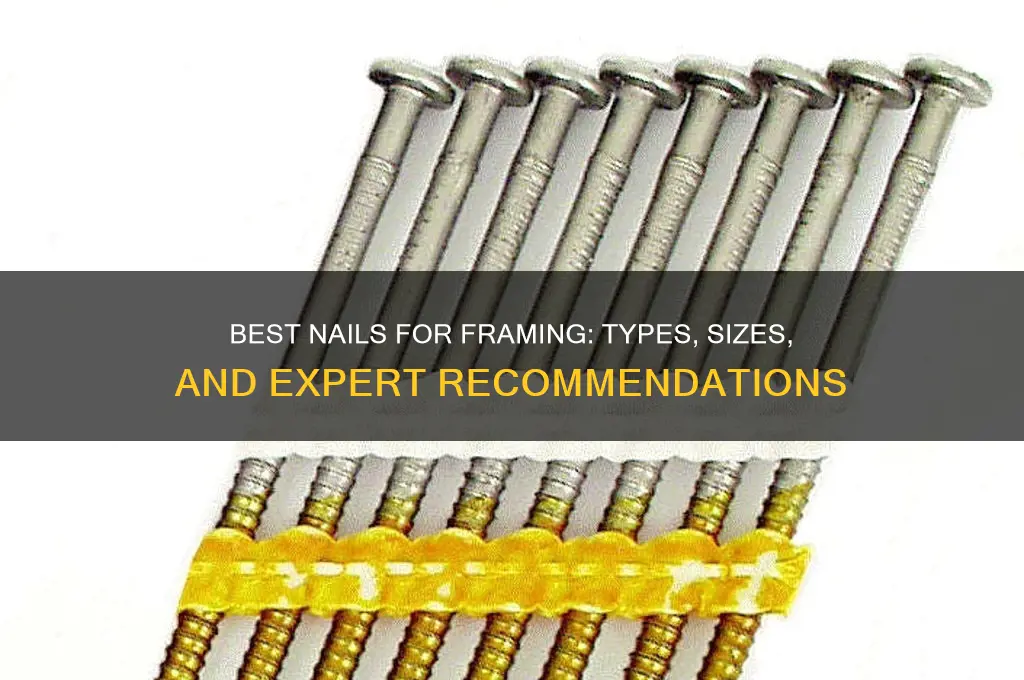

When it comes to framing, choosing the right nails is crucial for ensuring structural integrity and longevity. The type of nails you select depends on the specific application, materials being used, and local building codes. Common options include common nails, which are versatile and ideal for general framing due to their thick shanks and large heads, and box nails, which are lighter and easier to drive, making them suitable for lighter framing tasks. For exterior projects or pressure-treated wood, galvanized or stainless steel nails are recommended to prevent corrosion. Additionally, consider the length and gauge of the nails to match the thickness of the materials being joined, ensuring a secure and durable connection. Always consult local building regulations and project requirements to make the best choice for your framing needs.
| Characteristics | Values |
|---|---|
| Type | Common, Box, or Framing Nails |
| Material | Steel (galvanized for outdoor use) |
| Length | 2" to 4" (common), depends on application |
| Diameter | 0.113" to 0.131" (8d to 16d nails) |
| Head Type | Flat or Checkered (for better grip) |
| Shank Type | Smooth, Ring, or Spiral (spiral for better holding power) |
| Coating | Galvanized, Bright (non-coated), or Vinyl |
| Use Case | Wood framing, wall studs, floor joists, and sheathing |
| Compatibility | Works with hammer or nail gun (15-degree wire-weld collated for nail guns) |
| Strength | High tensile strength for structural integrity |
| Corrosion Resistance | Galvanized nails offer better rust resistance |
| Cost | Affordable, varies by material and quantity |
| Availability | Widely available at hardware stores |
| Code Compliance | Must meet local building codes (e.g., ICC-ES standards) |
Explore related products
What You'll Learn
Nail Length for Framing
Choosing the right nail length for framing is critical to ensuring structural integrity and longevity. A nail that’s too short may not penetrate deep enough to secure the joint, while one that’s too long risks splitting the wood or protruding unnecessarily. For standard 2x4 framing, a 3.5-inch nail is often recommended, as it provides sufficient penetration into the stud and secures the sheathing or drywall effectively. However, this length can vary based on the thickness of the materials being joined and the specific load-bearing requirements of the structure.
Analyzing the relationship between nail length and wood thickness reveals a simple rule of thumb: the nail should penetrate at least 1.5 inches into the supporting stud or plate. For example, when framing with 2x4s and ½-inch sheathing, a 3-inch nail would suffice, as it allows 2.5 inches to pass through the sheathing and 1.5 inches to anchor into the stud. In contrast, thicker materials like ¾-inch plywood or OSB would require a longer nail, such as a 3.25-inch or 3.5-inch option, to meet this minimum penetration requirement.
From a practical standpoint, using the correct nail length minimizes the risk of structural failure and reduces the need for additional fasteners. For instance, in high-wind or seismic zones, building codes often mandate longer nails to enhance shear resistance. A 4-inch nail might be specified for exterior sheathing in these areas, ensuring the framing can withstand greater lateral forces. Always consult local building codes or an engineer to confirm the appropriate nail length for your specific project.
Comparing nail lengths also highlights the trade-offs between ease of use and structural performance. Shorter nails are less likely to cause wood splitting but may not provide adequate holding power. Longer nails offer superior strength but require more force to drive and increase the risk of splitting, especially in hardwoods or near the ends of boards. To mitigate this, pre-drilling pilot holes or using ring-shank nails can improve holding power without increasing nail length.
In conclusion, selecting the right nail length for framing is a balance of material thickness, load requirements, and structural safety. By adhering to the 1.5-inch penetration rule and considering environmental factors, you can ensure a secure and code-compliant frame. Always prioritize precision over guesswork, as the right nail length is a small detail with a significant impact on the overall stability and durability of your construction project.
Understanding the Nail Body: Structure, Function, and Health Essentials
You may want to see also
Explore related products
Common vs. Box Nails
Choosing between common nails and box nails for framing hinges on understanding their distinct designs and intended applications. Common nails, with their broader heads and thicker shanks, are the traditional workhorses of construction. Their robust build provides superior holding power, making them ideal for heavy-duty framing tasks where structural integrity is paramount. Box nails, on the other hand, feature smaller heads and thinner shanks, designed to minimize wood splitting. This makes them a better choice for lighter framing projects or when working with softer woods that are prone to damage from thicker nails.
Consider the scenario of building a simple wooden frame for a garden bed. Here, box nails would be the more prudent choice. Their thinner profile reduces the risk of splitting the wood, ensuring a clean and secure joint. However, for constructing a load-bearing wall, common nails would be the safer option due to their greater strength and holding capacity. The key is to match the nail type to the specific demands of the project, balancing the need for strength with the risk of material damage.
From a practical standpoint, the cost difference between common and box nails is minimal, so the decision should primarily be driven by functionality rather than budget. Common nails are typically available in lengths ranging from 2 to 6 inches, while box nails are commonly found in 1 to 4-inch lengths. When using a hammer, common nails require more force to drive due to their thicker shanks, whereas box nails can be driven more easily, reducing the risk of bending or missing the mark. For precision work, a nail gun can be used with either type, but ensure the gun is compatible with the nail’s diameter and length.
A critical caution when using box nails is their tendency to shear under heavy loads, as their thinner shanks offer less resistance to lateral forces. This makes them unsuitable for applications where the framed structure will bear significant weight or stress. Conversely, common nails, while stronger, can cause visible damage if not used carefully, particularly in finished or delicate woodwork. Always pre-drill pilot holes when using common nails in hardwoods to prevent splitting, and consider using a countersink bit to hide the nail heads for a cleaner finish.
In conclusion, the choice between common and box nails boils down to the specific requirements of your framing project. For heavy-duty applications where strength is non-negotiable, common nails are the clear winner. For lighter tasks where preserving the material’s integrity is crucial, box nails offer a more delicate yet effective solution. By carefully assessing the demands of your project and selecting the appropriate nail type, you can ensure both durability and precision in your framing work.
Understanding Nail Cuticle Length: How Far Do They Extend?
You may want to see also
Explore related products
Galvanized vs. Stainless Nails
Choosing between galvanized and stainless steel nails for framing hinges on understanding their distinct properties and how they perform under specific conditions. Galvanized nails, coated with a layer of zinc, are designed to resist corrosion, making them ideal for outdoor projects or areas exposed to moisture. Stainless steel nails, on the other hand, are inherently corrosion-resistant due to their chromium content, offering superior durability in harsh environments. Both types excel in different scenarios, but their applications are not interchangeable without considering the long-term implications.
For framing projects in humid climates or direct contact with treated lumber, stainless steel nails are the safer choice. Treated wood contains chemicals that can accelerate corrosion in galvanized nails, leading to structural weaknesses over time. Stainless steel’s higher cost is justified here, as it ensures longevity and reduces the risk of nail failure. However, for interior framing or dry environments, galvanized nails provide sufficient protection at a lower price point. The key is to match the nail type to the specific demands of the project, balancing cost and performance.
From a practical standpoint, installation techniques differ slightly between the two. Stainless steel nails, being harder, require pre-drilling in dense hardwoods to prevent bending or breakage. Galvanized nails are softer and more forgiving, making them easier to drive into most woods without additional preparation. This distinction becomes critical when working with materials like oak or maple, where the wrong nail can lead to split wood or damaged fasteners. Always consider the wood type and nail hardness to ensure a secure, professional finish.
A lesser-known factor is the environmental impact of each option. Galvanized nails, while cost-effective, involve a zinc-coating process that can be less eco-friendly. Stainless steel, though pricier, is fully recyclable and has a longer lifespan, reducing the need for replacements. For builders prioritizing sustainability, stainless steel nails align better with green building practices, despite their higher upfront cost. This perspective shifts the decision from mere functionality to a broader consideration of environmental responsibility.
In summary, the choice between galvanized and stainless steel nails for framing depends on the project’s exposure to moisture, the type of wood used, and the builder’s budget and sustainability goals. Galvanized nails offer affordability and ease of use for most indoor applications, while stainless steel nails provide unmatched durability in challenging conditions. By evaluating these factors, builders can select the nail that best meets their project’s needs, ensuring both structural integrity and long-term satisfaction.
Fifties Housewife Nail Style: Polished Perfection and Feminine Elegance
You may want to see also
Explore related products
Nail Gauge for Wood Framing
Selecting the right nail gauge is critical for wood framing, as it directly impacts the strength and durability of your structure. Gauge refers to the thickness of the nail, with lower numbers indicating thicker nails. For framing, common gauges range from 8 to 16. Thicker nails (lower gauge) provide greater holding power, making them ideal for load-bearing walls and heavy timber construction. Thinner nails (higher gauge) are suitable for lighter applications like attaching sheathing or trim. Understanding this fundamental distinction ensures your project’s integrity and safety.
To determine the appropriate gauge, consider the specific demands of your framing project. For instance, 16-gauge nails are often used for finishing work or securing thin materials, while 8- or 10-gauge nails are essential for structural framing where strength is paramount. A practical tip is to match the nail gauge to the density and thickness of the wood. Softwoods like pine may require thicker nails to prevent splitting, whereas hardwoods can often accommodate thinner gauges. Always consult building codes or manufacturer recommendations for precise requirements.
A comparative analysis reveals that while thicker nails offer superior strength, they can also be more challenging to drive and may cause wood to split if not pre-drilled. Thinner nails, though easier to use, may not provide adequate holding power in critical joints. For example, using 12-gauge nails for wall studs strikes a balance between ease of use and structural reliability. This middle-ground approach is often recommended for DIY framers who prioritize efficiency without compromising safety.
Instructively, start by assessing the load-bearing needs of your project. For exterior walls or floor joists, opt for 8- or 10-gauge nails to ensure maximum stability. For interior partitions or non-load-bearing structures, 12- or 14-gauge nails are typically sufficient. Always use galvanized or stainless steel nails for outdoor projects to prevent rust and corrosion. Additionally, invest in a quality nail gun to drive nails efficiently and accurately, reducing the risk of errors or injuries.
Finally, a descriptive takeaway: imagine a well-framed house standing strong against wind and time. The secret lies in the meticulous choice of nail gauge, where each nail plays a vital role in the overall structure. By selecting the right gauge, you not only ensure the longevity of your project but also gain peace of mind knowing your work meets professional standards. Master this detail, and your framing will be as solid as the foundation beneath it.
Easy Steps to Repair Hardwood Floor Nail Holes Like a Pro
You may want to see also
Explore related products
$399
Using Nails vs. Screws
Nails and screws both have their place in framing, but their strengths and weaknesses dictate where each shines. Nails, particularly common nails or framing nails, excel in sheer holding power. Their smooth shanks allow wood to swell and contract naturally with moisture changes, reducing the risk of splitting. This flexibility makes nails ideal for structural framing where wood movement is expected, like wall studs, floor joists, and roof trusses.
Nails are also faster to install, especially when using a nail gun. A single strike drives them home, making them the go-to choice for large-scale framing projects where speed is paramount.
Screws, on the other hand, offer superior withdrawal strength. Their threaded design creates a tighter grip, making them less prone to pulling out under tension. This makes screws ideal for applications where the joint will be subjected to lateral forces, such as attaching ledger boards to walls or securing heavy loads like cabinets. Screws also allow for easier disassembly and adjustments, as they can be removed and reinserted without damaging the wood as much as nails. However, their tighter grip can also be a drawback, as it restricts wood movement, increasing the risk of splitting in areas prone to moisture fluctuations.
Screws are also more time-consuming to install, requiring pre-drilling to prevent wood splitting, especially in hardwoods.
The choice between nails and screws ultimately depends on the specific framing application and the desired outcome. For structural integrity and speed, nails reign supreme. For joints requiring maximum holding power against lateral forces and potential disassembly, screws take the lead. Consider the wood type, moisture exposure, and the need for adjustability when making your decision. Remember, using the right fastener for the job ensures a strong, durable, and safe structure.
Sparkle and Shine: Mastering Shellac Nails with Glitter at Home
You may want to see also
Frequently asked questions
For framing, common nails (also known as carpentry nails) are typically the best choice due to their durability and holding power. They have a thick shank and a flat head, making them ideal for structural applications.
Yes, galvanized nails are a great option for framing, especially in outdoor or moisture-prone areas. The zinc coating provides corrosion resistance, ensuring the nails last longer in harsh conditions.
While screws offer stronger holding power and are easier to remove, nails are generally preferred for framing due to their speed of installation and cost-effectiveness. Screws are often used in specific applications where extra strength is needed.
The nail length depends on the thickness of the materials being joined. A common rule is to use a nail that is 3 times the thickness of the material being fastened. For example, use 3.5-inch nails for 2x4 framing. Always check local building codes for specific requirements.
