Caleb Foster

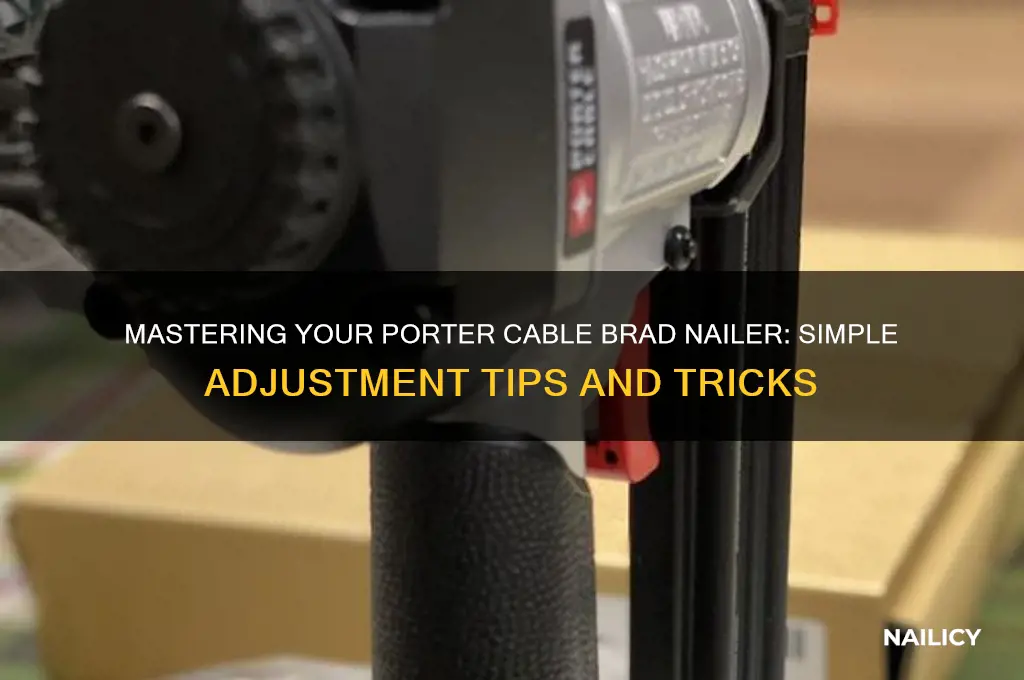

Adjusting a Porter Cable brad nailer is essential for achieving precise and consistent results in woodworking and trim projects. Whether you need to fine-tune the depth of drive, adjust the air pressure, or troubleshoot common issues, understanding the tool's settings is crucial. The process typically involves familiarizing yourself with the nailer's controls, such as the depth adjustment wheel and exhaust port, and ensuring the air compressor is set to the recommended PSI. By following the manufacturer’s guidelines and practicing on scrap material, you can optimize the nailer’s performance, minimize nail blowouts or jams, and ensure clean, professional finishes in your work.
| Characteristics | Values |
|---|---|
| Model Compatibility | Porter-Cable BN200B, BN200A, and similar brad nailer models |
| Adjustment Type | Depth adjustment wheel |
| Depth Adjustment Range | Typically 6 settings (1-6) for various material thicknesses |
| Tool Required for Adjustment | No additional tools needed (built-in adjustment wheel) |
| Adjustment Location | Depth adjustment wheel located on the side of the nailer |
| Nail Length Compatibility | 5/8" to 2" (15mm to 50mm) brad nails |
| Adjustment Purpose | To control nail depth for flush or countersunk nails |
| Recommended Setting | Start at mid-range (3-4) and adjust based on material and nail length |
| Additional Adjustment Feature | Exhaust port direction adjustment (if applicable) |
| Maintenance Tip | Regularly clean the nose and lubricate as per the user manual |
| Safety Precaution | Disconnect air supply before making adjustments |
| User Manual Reference | Refer to the Porter-Cable user manual for model-specific instructions |
Explore related products
What You'll Learn
- Loading Nails: Insert nail strip into magazine, ensuring alignment with guide and proper orientation
- Adjusting Depth: Turn depth adjustment wheel clockwise for deeper nails, counterclockwise for shallower
- Clearing Jams: Disconnect air supply, remove nose, clear jammed nails, and reassemble
- Setting Air Pressure: Adjust compressor pressure between 70-120 PSI for optimal nail driving
- Maintenance Tips: Lubricate regularly, clean exhaust ports, and inspect O-rings for wear
Loading Nails: Insert nail strip into magazine, ensuring alignment with guide and proper orientation
Loading nails into your Porter Cable brad nailer is a straightforward process, but precision is key. Begin by selecting the correct nail strip for your project, ensuring the length and gauge match your nailer’s specifications. Most Porter Cable brad nailers accommodate 5/8-inch to 2-inch 18-gauge brad nails, but always consult your model’s manual for exact compatibility. With the nailer disconnected from the air supply, locate the magazine release latch, typically found near the nose of the tool. Depress this latch to open the magazine, revealing the loading area.
The orientation of the nail strip is critical for smooth operation. Hold the strip so the heads of the nails face outward, aligning with the guide rails inside the magazine. This ensures the nails feed correctly and prevents jams. Insert the strip at a slight angle, then gently lower it into place, allowing the guide rails to secure it. A properly aligned strip will sit flush against the back of the magazine, with no nails protruding or misaligned.
A common mistake is forcing the nail strip into the magazine, which can damage the tool or cause feeding issues. If the strip doesn’t slide in smoothly, double-check its orientation and alignment. The guide rails are designed to accommodate the strip’s shape, so resistance often indicates incorrect placement. Once loaded, close the magazine by releasing the latch and ensure it locks securely. A faint click or snap typically confirms proper closure.
For optimal performance, inspect the nail strip before loading. Look for bent nails, debris, or damaged packaging, as these can disrupt feeding. Additionally, avoid overloading the magazine; most Porter Cable brad nailers hold up to 100 nails, but exceeding this can strain the mechanism. Regularly cleaning the magazine and guide rails with compressed air removes dust and debris, ensuring consistent nail feeding.
Mastering the nail-loading process not only enhances efficiency but also extends the life of your tool. Proper alignment and orientation minimize wear on internal components, reducing the risk of malfunctions. By treating this step with care, you’ll maintain the reliability of your Porter Cable brad nailer, ensuring it performs flawlessly across countless projects.
Create Adorable Minnie Mouse Bow Nails: Easy DIY Tutorial
You may want to see also
Explore related products
Adjusting Depth: Turn depth adjustment wheel clockwise for deeper nails, counterclockwise for shallower
The depth at which a brad nail is driven into the material is critical for both aesthetics and structural integrity. Too deep, and the nail head sinks below the surface, leaving an unsightly dimple; too shallow, and the nail head protrudes, risking damage to the finish or injury. The Porter Cable brad nailer’s depth adjustment wheel is your solution to this precision problem. Located typically near the nose of the tool, this wheel allows you to fine-tune nail depth with minimal effort, ensuring each nail is set perfectly.
To adjust the depth, start by testing the nailer on a scrap piece of material similar to your project. Fire a few nails and observe their depth. If they’re not seated correctly, turn the depth adjustment wheel. Clockwise rotations increase the force, driving nails deeper into the material. Counterclockwise turns reduce the force, allowing nails to sit shallower. Each click of the wheel corresponds to a slight change in depth, so make adjustments incrementally to avoid overcorrection.
A practical tip is to align the nail head with the surface for a flush finish. For softer woods like pine, you may need to turn the wheel counterclockwise to prevent over-driving. Harder woods like oak often require a clockwise adjustment to ensure nails are fully seated. Always refer to the material’s density and the desired finish when making adjustments.
One common mistake is ignoring the air pressure setting while adjusting depth. The depth wheel works in tandem with air pressure, so ensure your compressor is set to the recommended PSI (typically 70–120 PSI for brad nailers). If nails are still not seating correctly after adjusting the wheel, check and adjust the air pressure before making further depth changes.
In conclusion, mastering the depth adjustment wheel on your Porter Cable brad nailer is essential for professional results. By understanding the relationship between wheel direction and nail depth, and by testing adjustments on scrap material, you can achieve consistent, flawless finishes. Remember: clockwise for deeper, counterclockwise for shallower, and always consider the material and air pressure for optimal performance.
Master Nail Tech Skills: Wisconsin Licensing Guide for Beginners
You may want to see also
Explore related products
Clearing Jams: Disconnect air supply, remove nose, clear jammed nails, and reassemble
Jams in your Porter Cable brad nailer can bring your project to a screeching halt. Understanding the culprit behind these jams is crucial for efficient troubleshooting. Often, the issue stems from a combination of factors: nail length mismatch, debris buildup in the nose, or worn internal components.
Diagnosis and Disassembly: Begin by disconnecting the air supply to ensure safety. Next, locate the nose release mechanism, typically a latch or button, and disengage it to remove the nose piece. This exposes the firing channel, allowing you to visually inspect for jammed nails or debris.
Using a pair of needle-nose pliers, carefully extract any stuck nails, taking care not to damage the internal components.
Cleaning and Reassembly: With the jam cleared, thoroughly clean the firing channel and nose piece with compressed air to remove any lingering debris. Inspect the driver blade for wear or damage, replacing it if necessary. Reassemble the nose piece, ensuring proper alignment and secure fastening.
Prevention is Key: To minimize future jams, always use the correct nail length and type recommended for your Porter Cable model. Regularly clean the tool's interior, paying close attention to the firing channel and nose area. Additionally, consider using lubricating oil specifically designed for pneumatic tools to ensure smooth operation and reduce friction.
Easy Nail Hanging Tips for Room Lights: A Step-by-Step Guide
You may want to see also
Explore related products
Setting Air Pressure: Adjust compressor pressure between 70-120 PSI for optimal nail driving
Air pressure is the lifeblood of your Porter Cable brad nailer, dictating how effectively it drives nails into various materials. Too little pressure, and nails won’t seat properly; too much, and you risk splitting wood or damaging surfaces. The sweet spot lies between 70 and 120 PSI, a range that balances power and precision for most woodworking applications. This window ensures nails are driven flush without compromising the integrity of the material, whether you’re working with softwoods like pine or harder varieties like oak.
To adjust the compressor pressure, start by locating the regulator on your air compressor. Turn the adjustment knob clockwise to increase pressure or counterclockwise to decrease it. Begin at 80 PSI as a baseline, then test-fire a few brad nails into a scrap piece of your project material. Observe how deeply the nails are driven. If they’re not flush, incrementally increase the pressure by 5 PSI at a time until the desired depth is achieved. Conversely, if nails are sinking too far or causing surface damage, reduce the pressure in the same measured increments.
Material thickness and density play a critical role in determining the ideal pressure within this range. For thinner or softer woods, aim for the lower end (70-90 PSI) to prevent over-driving. Harder or thicker materials may require higher pressure (100-120 PSI) to ensure nails are fully seated. Always test on scrap material first to avoid costly mistakes on your actual project.
A common oversight is neglecting to account for hose friction, which can reduce the effective pressure at the nailer. If your compressor is set to 100 PSI but the nailer isn’t performing as expected, check the hose length and condition. Longer or older hoses can restrict airflow, effectively lowering the pressure. In such cases, slightly increase the compressor setting to compensate, ensuring the nailer receives the intended pressure.
Finally, consistency is key. Once you’ve dialed in the optimal pressure for your project, mark the regulator setting or take a photo for future reference. This saves time and ensures repeatable results across similar projects. Remember, small adjustments can yield significant improvements in nailer performance, so approach the process methodically and with patience.
Creative Ways to Conceal Nail Holes with Stylish Decorations
You may want to see also
Explore related products
Maintenance Tips: Lubricate regularly, clean exhaust ports, and inspect O-rings for wear
Regular lubrication is the lifeblood of your Porter Cable brad nailer, ensuring smooth operation and prolonging its lifespan. Think of it as the oil change for your car—neglect it, and you risk friction, wear, and eventual breakdown. Use a lightweight, pneumatic tool oil, applying 5-10 drops directly into the air inlet after every 8-10 hours of use. Avoid over-lubricating, as excess oil can attract dust and debris, clogging the mechanism. Wipe away any visible residue with a clean cloth to keep the tool running efficiently.
Exhaust ports are the lungs of your nailer, and clogged ports can lead to reduced power and inconsistent performance. Dust, wood particles, and debris accumulate over time, restricting airflow. Clean these ports weekly with a soft-bristle brush or compressed air. Pay special attention to the area around the exhaust, as buildup here can redirect air forcefully, potentially causing injury. A clear exhaust port not only improves performance but also ensures safer operation by directing air away from your work area.
O-rings are the unsung heroes of your nailer, sealing critical components to prevent air leaks and maintain pressure. Over time, these rubber seals degrade, crack, or warp, leading to reduced efficiency or even tool failure. Inspect O-rings monthly for signs of wear, such as brittleness, swelling, or visible cracks. Replace them immediately if damaged, using only manufacturer-approved parts. Proper O-ring maintenance ensures consistent nail driving and prevents costly repairs down the line.
By integrating these maintenance tips—regular lubrication, exhaust port cleaning, and O-ring inspection—into your routine, you’ll keep your Porter Cable brad nailer in peak condition. Each step addresses a specific vulnerability in the tool’s design, from internal friction to external contamination. Together, they form a proactive approach to maintenance, saving you time, money, and frustration while ensuring your nailer performs reliably, project after project.
Conceal Your Nails: Creative Tips to Keep Parents Unaware
You may want to see also
Frequently asked questions
To adjust the depth setting, locate the depth adjustment wheel (usually near the trigger). Turn the wheel clockwise to drive nails deeper or counterclockwise to drive them shallower. Test on a scrap piece of wood to ensure the desired depth is achieved.
Jamming can occur due to incorrect nail size, debris in the nose, or worn parts. To fix, disconnect the air supply, remove the jammed nail with the provided tool, ensure you’re using the correct brad nails, and clean the nose area. If issues persist, inspect the driver blade and O-rings for wear.
Adjust the air pressure using the regulator on your air compressor. Start with a setting of 70–90 PSI and test on scrap wood. Increase or decrease the pressure in small increments until the nails are driven flush without damaging the material. Refer to the tool’s manual for specific recommendations.
