Nails are used to fasten pieces of material together. There are thousands of varieties of nails, each suited to a specific use. The length of a nail is one of its most important attributes. Nails that are 6 inches or longer are often referred to as spikes. The length of a nail is often measured in inches, and the most common sizes are 1 3/4, 3, and 3 1/4. The choice between 3 and 3 1/4 framing nails is a common dilemma, with the latter being equal in length to 16D sinkers, which are widely used for framing.
| Characteristics | Values |
|---|---|
| N/A | N/A |
Explore related products
What You'll Learn
Nail types: common, box, ring shank, and more
When it comes to nails, choosing the right type is essential for any project. While common nails are versatile and widely used, there are many other types of nails designed for specific applications. Here is an overview of some common nail types and their uses:
Common Nails
Common nails are a popular choice for framing, construction, and carpentry work. They feature a heavy shank that provides sturdy support and a round head that remains visible on the surface. Common nails are ideal when strength and functionality take precedence over appearance.
Box Nails
Box nails closely resemble common nails but have thinner shanks, making them less likely to split thinner pieces of wood. They are often galvanized to prevent corrosion and are commonly used for nailing fences, siding, face nailing floors, framing, and constructing wood boxes and crates.
Ring Shank Nails
Ring shank nails, also known as annular ring nails, have a series of raised rings around their shaft. These rings compress wood fibers, providing a strong hold in soft or medium-density wood. They are more challenging to pull out than other nail types.
Flooring Nails
Flooring nails come in various designs to suit different materials. For example, underlayment nails have rings on the shanks for securing plywood or subfloors, while other wood flooring nails feature a spiral shank to reduce slippage.
Masonry and Concrete Nails
Masonry and concrete nails are designed for use in concrete, brick, or other masonry applications. Masonry nails have grooved shafts that cling to concrete or brick, making them less likely to loosen or slip. Concrete nails, on the other hand, have fluted shafts and are made from hardened steel.
Specialty Nails
Specialty nails include upholstery nails, corrugated fasteners, wood joiners, and various other types designed for specific applications. These nails often have unique features or coatings to enhance their performance in their intended use.
Longer Nails: Typing Speed Boost or Hindrance?
You may want to see also
Explore related products
Shank length: from 1-inch to 6-inch shanks
Shank length is a key consideration when selecting the right nail for your project. Shank lengths can vary from 1-inch to 6-inch nails, with the longer nails often referred to as spikes.
The length of a nail is indicated by the letter "d", which stands for "penny size". The term corresponds to the measurement of nails from the head to the tip. For example, a 2d nail is 1-inch long, a 4d nail is 1.5-inches, and a 6d nail is 2-inches long. The higher the number, the thinner the nail.
The 1-inch to 6-inch shank length range covers a variety of nail types, including common nails, box nails, and roofing nails. Common nails have heavy shanks and are used for framing, construction, and carpentry. Box nails, on the other hand, have thinner shanks and are less likely to split thinner pieces of wood. Roofing nails often have ring shanks and twisted shafts for increased holding power to keep roofing materials in place.
Within this shank length range, you can also find annular or threaded nails, which have threaded shanks that provide extra grip and superior pullout resistance. These nails are often used in construction projects that require extra holding power, such as subflooring and drywall replacement.
Additionally, the type of nail head is an important consideration. Flat heads offer a large striking surface and additional holding power, while checkered flat heads are designed to prevent slippage when hammering from awkward angles. Countersunk heads, on the other hand, have a conical shape that can be pushed out of sight below the surface.
The Longevity of SNS Nails: How Long Do They Last?
You may want to see also
Explore related products
Shank diameter: from 0.072-inch to 0.238-inch
The shank of a nail is the long, cylindrical part that extends from the head to the tip and is typically inserted into the material being fastened. The shank diameter is a measurement of its thickness in inches. Nails are used to fasten pieces of material together, and there are almost as many types of nails as there are projects. Shank diameter is one of the factors that vary to make different nails suitable for different projects.
Nail size is standardized according to several factors, including diameter, gauge, and shank length. Nails with threaded or ringed shanks resist pullout more effectively than those with smooth shanks. The type of project also influences the choice of nail. For instance, in projects that require extra holding power, such as subflooring and drywall replacement, construction workers use annular or threaded nails. These nails have threaded shanks that provide additional grip once inserted into the material.
The shank diameter of nails varies from 0.072 inches to 0.238 inches. For example, a 2d, 15-gauge nail has a shank diameter of 0.072 inches, while a 40d or 60d nail has a shank diameter of 0.238 inches. The 6d nail, which is commonly used for framing, has a shank diameter of 0.12 inches. The 16d nail, which is used for house framing, has a shank diameter of 0.165 inches.
In addition to shank diameter, the shank can also vary in length and shape. The shank can be smooth or have ridges or threads, which provide more holding power and prevent the nail from slipping or pulling out of the material.
Long Nails and Contact Lenses: A How-to Guide
You may want to see also
Explore related products
Head diameter: from 3/16-inch to 17/32-inch
Nail sizes are standardised according to several factors, including diameter, gauge, and shank length. These characteristics make various nails suitable for different projects.
The "penny system" is a special classification of nail sizes that originated in England. The nail size was originally named after the price of 100 nails of a given size. The "d" is the symbol for the penny. For example, 16d stands for a 16-penny nail. Now, the term corresponds to the measurement of nails from the head to the tip, which is the nail length, specified by a digit and the letter "D". Thus, a 2d nail is 1 inch long.
The "d" suffix is related to the nail size, and variations in nail standard sizes make them suited for different applications. Nails 6 inches and longer are often referred to as spikes.
The nail sizing charts below provide the industry standards for nail sizing.
| Nail Type | Shank Diameter | Shank Length | Head Diameter |
|---|---|---|---|
| 2d, 15 gauge | 0.072-inch | 1-inch | 3/16-inch |
| 2d, 14 gauge | 0.083-inch | 1-inch | 13/64-inch |
| 3d | 0.083-inch | 1.25-inch | 13/64-inch |
| 4d | 0.109-inch | 1.5-inch | 1/4-inch |
| 5d | 0.109-inch | 1.75-inch | 1/4-inch |
| 6d | 0.12-inch | 2-inch | 17/64-inch |
| 8d | 0.134-inch | 2.5-inch | 9/32-inch |
| 10d | 0.148-inch | 3-inch | 5/16-inch |
| 12d | 0.148-inch | 3.25-inch | 5/16-inch |
| 16d | 0.135-0.165-inch | 3.5-inch | 11/32-0.148-inch |
| 20d | 0.148-0.203-inch | 4-inch | 13/32-inch |
| 30d | 0.220-inch | 4.5-inch | 7/16-inch |
| 40d | 0.238-inch | 5-inch | 15/32-inch |
| 60d | 0.238-inch | 6-inch | 17/32-inch |
The above table provides a comprehensive overview of nail dimensions, including the nail type, shank diameter, shank length, and head diameter. The data is presented in inches, with specific values indicating the measurements for each component of the nail. This information can assist in selecting the appropriate nail for specific applications, ensuring compatibility and secure fastening.
Best Nail Shapes to Create an Illusion of Longer Fingers
You may want to see also
Explore related products

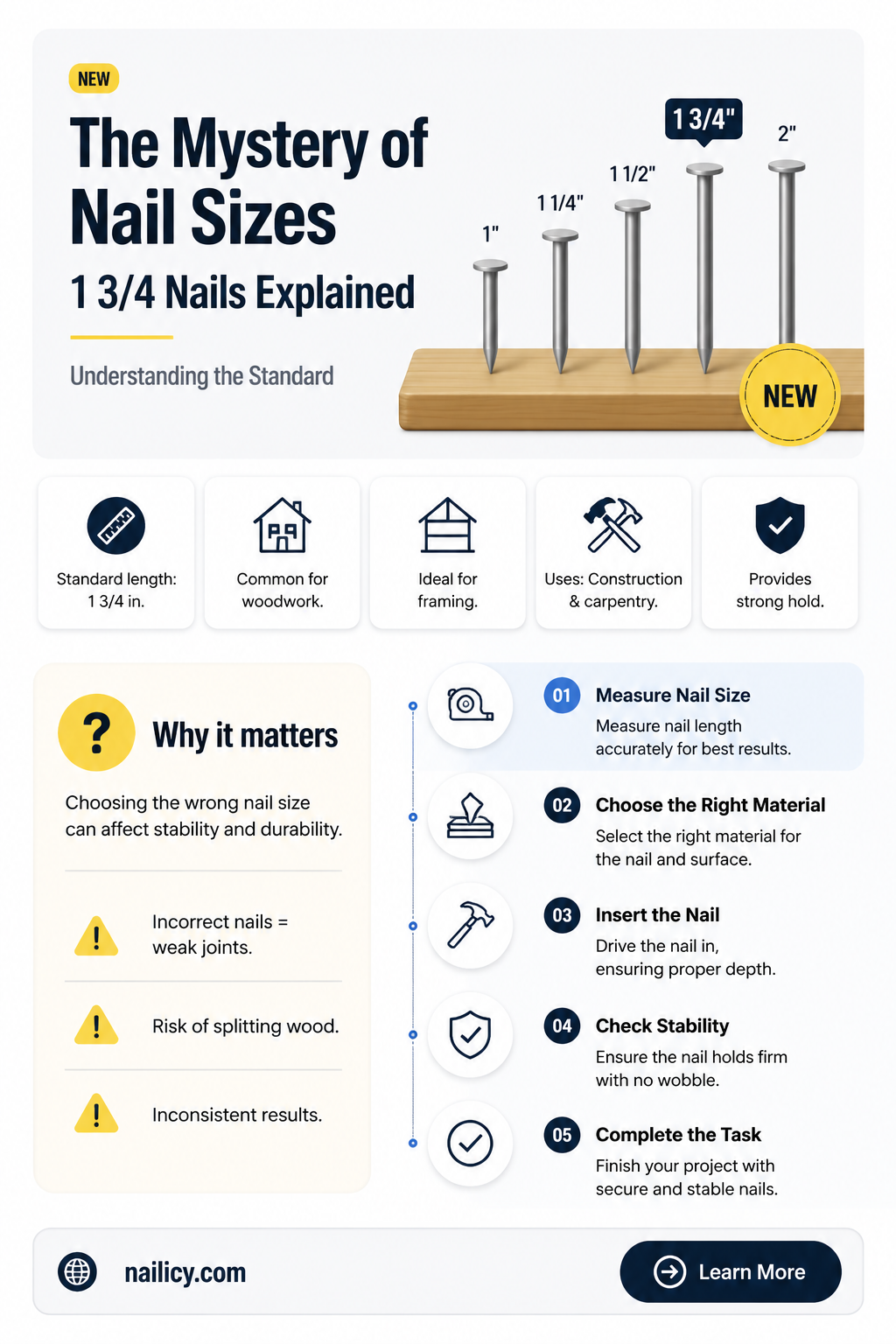

Nail length: 1 3/4-inch, 3-inch, 3 1/4-inch, and more
When it comes to nail length, selecting the appropriate size for your project is essential. Nails are available in various lengths, including 1 3/4-inch, 3-inch, and 3 1/4-inch options, each suited to specific applications.
The 1 3/4-inch nail is a common length that can be found at most hardware stores. This length is often used for general-purpose applications and light-duty projects. It is long enough to provide a secure hold but not so long that it becomes unwieldy or difficult to work with. These nails are typically used for fastening pieces of material together, such as wood or drywall, where a standard length is required.
Moving up in size, the 3-inch nail offers increased holding power and is often utilized in framing, construction, and carpentry jobs. This length is ideal when strength and durability are crucial. Common nails with a length of 3 inches are a popular choice for many professionals due to their heavy shank, which provides sturdy support for framing and other rough work. The round head of these nails remains visible on the surface, indicating that appearance is not the primary concern.
For even greater holding strength and stability, the 3 1/4-inch nail comes into play. This extended length is designed for applications where maximum fastening power is required. With a longer shank, these nails provide superior grip and are often used in projects where the joined materials need to withstand significant stress or weight.
It is worth noting that nail lengths can vary significantly, and some nails even reach 6 inches or longer, at which point they are typically referred to as spikes. The specific length of a nail is crucial, as it determines its suitability for a particular task. For instance, shorter nails are ideal for delicate woodworking to avoid splitting the wood, while longer nails provide the necessary holding power for hard wood flooring.
In summary, nail length plays a critical role in the selection process, and understanding the specific requirements of your project is key to making the right choice. Whether it's the versatile 1 3/4-inch nail, the sturdy 3-inch common nail, or the heavy-duty 3 1/4-inch option, each length serves a unique purpose in the realm of construction and carpentry.
The Allure of Long Nails: Why Women Love Them
You may want to see also
Frequently asked questions
There are thousands of varieties of nails, each designed for a specific function. Common nails, for instance, are used for framing, construction, and carpentry jobs. Box nails, on the other hand, are thinner and less likely to split wood.
The shank of a nail is the long portion that is driven into the material. There are several types of shanks, including standard or bright shanks, annular or ring shanks, barbed shanks, spiral shanks, and more.
A nail's gauge refers to its diameter or thickness. Higher gauge sizes correspond to thinner nails, while lower sizes correspond to thicker, stronger nails.
Penny size, or "d," indicates the nail size, though it doesn't correspond to another unit of measurement. For example, a 16d nail is longer than an 8d nail.
Yes, 1 3/4" nails are indeed 1 3/4" long.
